Canvas
Echsorbix ® Canvas Acoustic Panels
Echsorbix® Wall Decor Acoustic Panels combine stunning visual aesthetics with high-performance acoustic functionality. These printed acoustic panels seamlessly mimic the look of luxurious wallpaper while effectively reducing reverberation and noise in any space. Utilizing advanced UV printing technology, the designs remain vibrant, fade-resistant, and long-lasting, even in well-lit environments.
- NRC, 9 mm
- 0.30
- Standard thickness
- 9 mm, 12 mm, 18 mm, 24 mm (±5%)
- Panel size
- 1800 x 900 mm (6 x 3 ft), custom sizes available
- Density grades
- EchoCore 15: 1500 GSM | EchoPro 18: 1800 GSM | EchoMax 22: 2200 GSM
- Areal weight
- 1200 to 3600 GSM (custom)
- Material
- 100% PET polyester fibre, non-woven
Enquiries answered within 48 hours. BOQ, specification and drawing support for project quantities.
01 / The product
Echsorbix ® Canvas Acoustic Panels
With over 1 million design possibilities, from elegant patterns to intricate graphics, Echsorbix® Wall Decor Acoustic Panels empower architects and designers to achieve both visual excellence and acoustic comfort in every project.
Manufactured by MMTPL at our state-of-the-art Palwal Plant since 2023, these panels are crafted to meet global quality standards, offering an exceptional blend of style, performance, and sustainability.
-
Key Benefits
- Aesthetic Appeal:Mimics the look and feel of premium wallpaper.
- Acoustic Performance:Effectively reduces echo, reverberation, and unwanted noise.
- UV Printing Technology:Designs are fade-resistant and long-lasting.
- Limitless Design Options:Over 1 million design possibilities to match any theme.
- Customizable Solutions:Tailor-made designs, patterns, and prints available.
- Eco-Friendly:Made from 100% recyclable PET fibers.
- Fire Safety Compliant:Certified under ASTM E-84 Fire Rating standards.
- Low Maintenance:Resistant to moisture, stains, and fading.
- Easy Installation:Lightweight panels that are simple to install on walls and ceilings.
-
Standards & Certifications
- ASTM E-84 Fire Rating:Ensures compliance with stringent fire safety standards.
- ASTM C423 Sound Absorption Coefficient:Verified acoustic performance.
- ISO 354 Sound Absorption Testing:Globally recognized certification for sound control.
- Low VOC Emissions:Safe and healthy for indoor environments.
-
Applications
- Commercial Spaces:Offices, conference rooms, coworking zones.
- Residential Spaces:Living rooms, bedrooms, home offices.
- Hospitality:Hotels, restaurants, lounges.
- Public Spaces:Libraries, auditoriums, museums.
- Educational Institutions:Classrooms, training centers, lecture halls.
- Healthcare Facilities:Clinics, wellness centers, hospitals.
-
Why Choose Echsorbix® Wall Decor Acoustic Panels?
Echsorbix® Wall Decor Acoustic Panels redefine the concept of functional art, offering the perfect blend of aesthetics and acoustic excellence. With UV fade-resistant printing, limitless design options, and premium sound-absorbing capabilities, these panels ensure that every space looks spectacular and sounds perfect.
Echsorbix® – Where Wallpaper Meets Acoustic Excellence.
02 / Specifications
Technical specifications
| Material | 100% PET polyester fibre, non-woven |
|---|---|
| Manufactured by | MMTPL (Mahabir Multi Tech Pvt. Ltd.), Palwal Plant, Haryana, India |
| Standard thickness | 9 mm, 12 mm, 18 mm, 24 mm (±5%) |
| Custom thickness | 4 mm to 24 mm |
| Panel size | 1800 x 900 mm (6 x 3 ft), custom sizes available |
| Areal weight | 1200 to 3600 GSM (custom) |
| Density grades | EchoCore 15: 1500 GSM | EchoPro 18: 1800 GSM | EchoMax 22: 2200 GSM |
| NRC, 9 mm | 0.30 |
| NRC, 12 mm | 0.40 |
| NRC, 18 mm | 0.50 |
| NRC, 24 mm | 0.60 |
| NRC, 9 mm over 20 mm BassBloc | 0.90 |
| Acoustic test standards | ASTM C423, ISO 354 |
| Fire rating | Class A and Class B (ASTM E84) |
| Flame spread index | 0 |
| Smoke developed index | S1 |
| Water sorption | ASTM C1104-2019 |
| Colourfastness | ISO 105-B02, grade 6 to 7 |
| Recycled content | Minimum 60% |
| Indoor air quality | VOC ≤ 0.5 mg/m³, UL GREENGUARD certified |
| Recyclable | 100% |
| Colours | 40+ standard, custom development available |
| Warranty | 5 year colour fastness |
| Lead time | 3 to 7 days |
| Country of origin | India |
| Printing technology | UV printing, fade resistant |
| Design options | Over 1 million print designs |
| Installation | Wall mounted |
- Material
100% PET Polyester Fiber
- Manufactured by
MMTPL, Palwal Plant (Since 2023)
- Size
6x3 feet / 1.8x0.9m
- Thickness
9mm, 12mm, 18mm, 24mm (customisable 4mm to 24mm)
- Density
1200 to 3600 GSM
- Printing Technology
UV Printing (Fade-Resistant and Long-Lasting)
- Design Possibilities
Over 1 Million Unique Designs
- Colors
Vibrant, customizable palettes available
- Installation
Easy wall mounting
03 / In projects

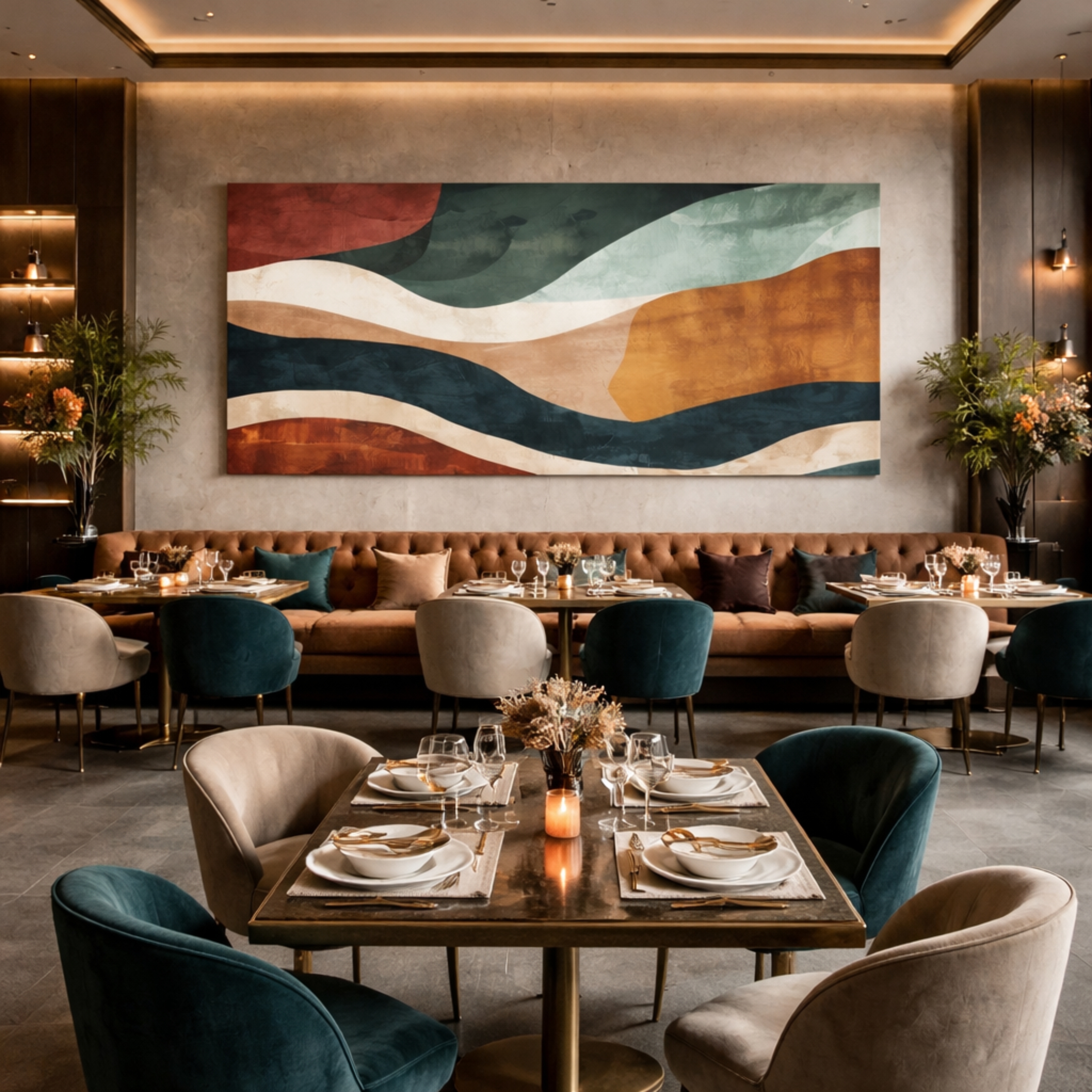

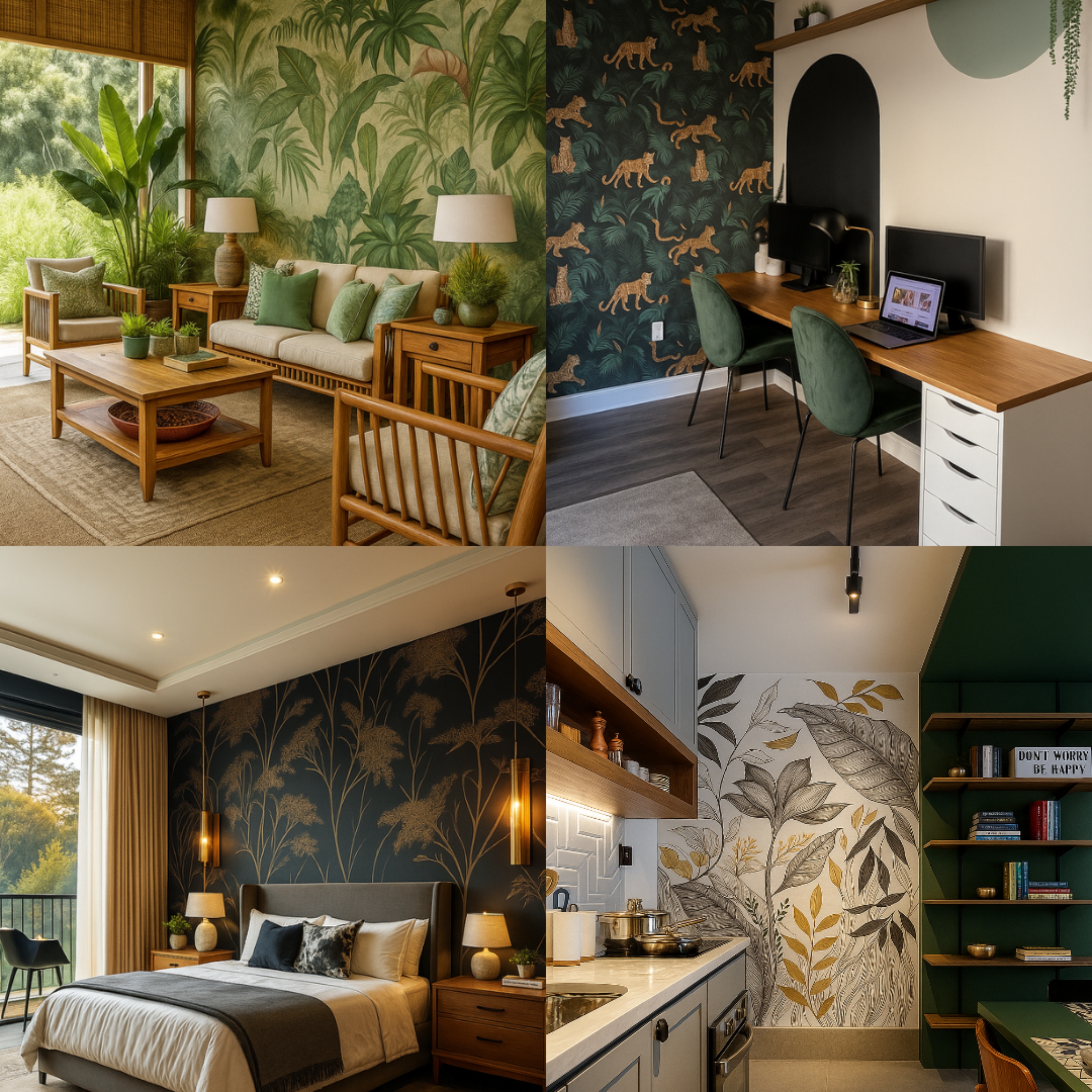

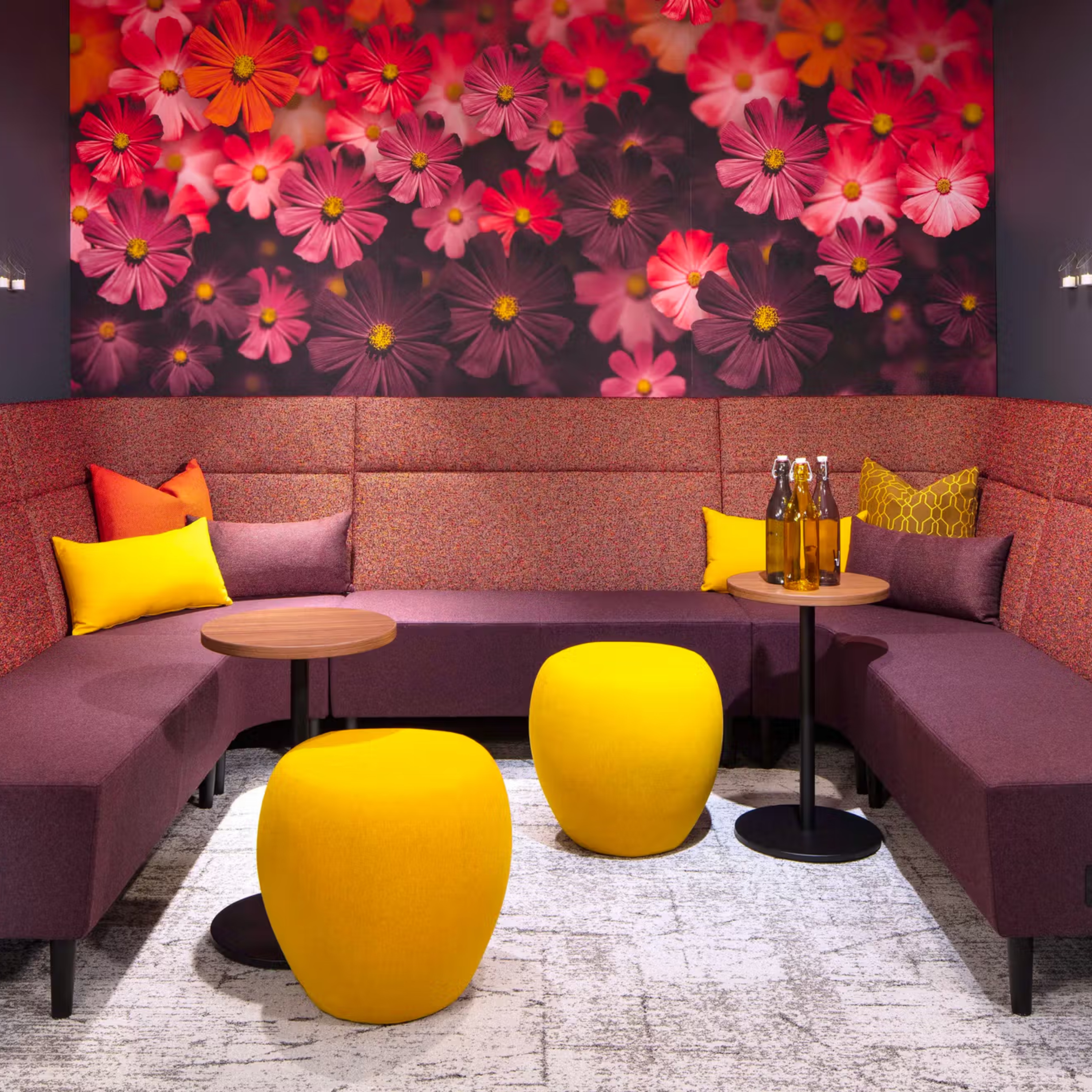

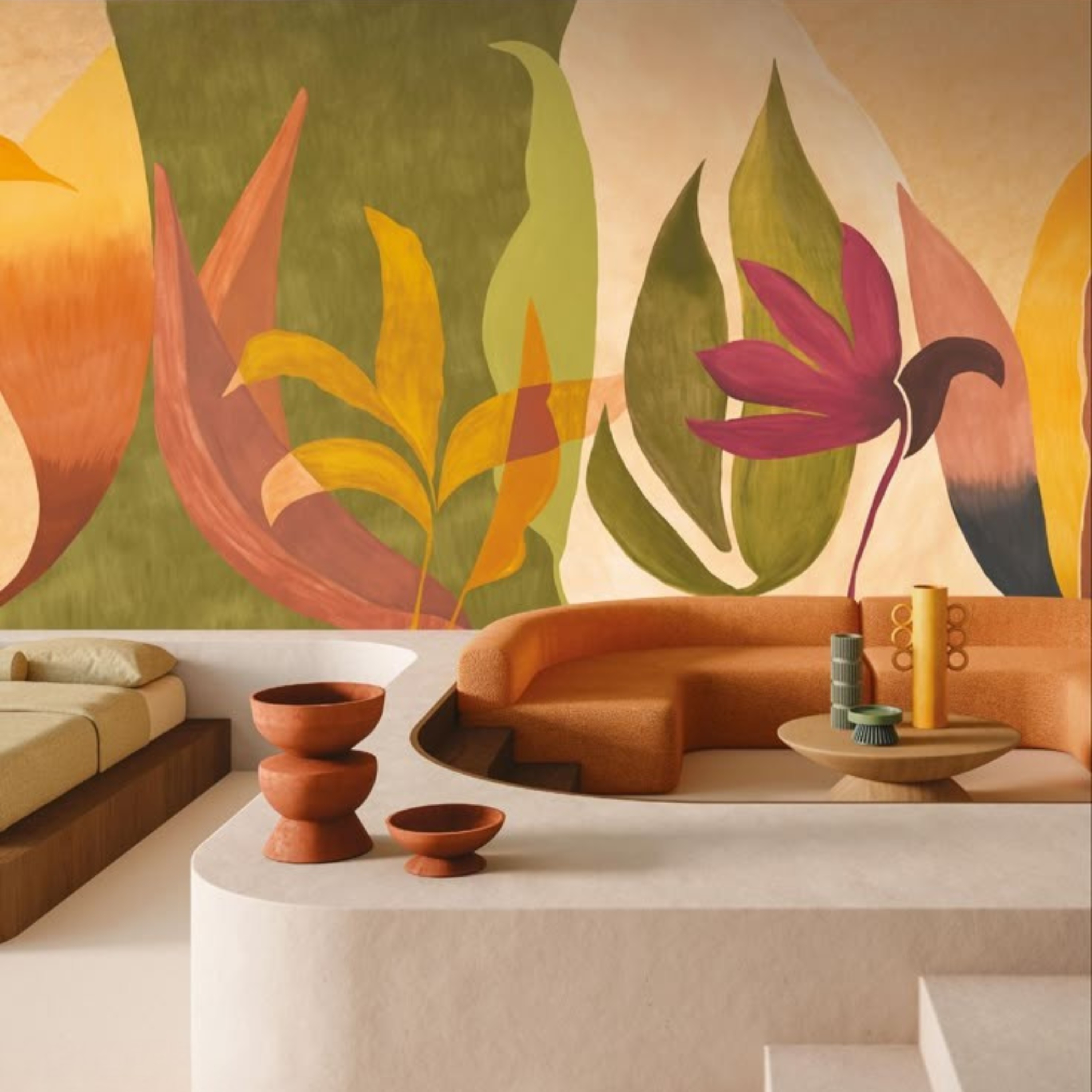

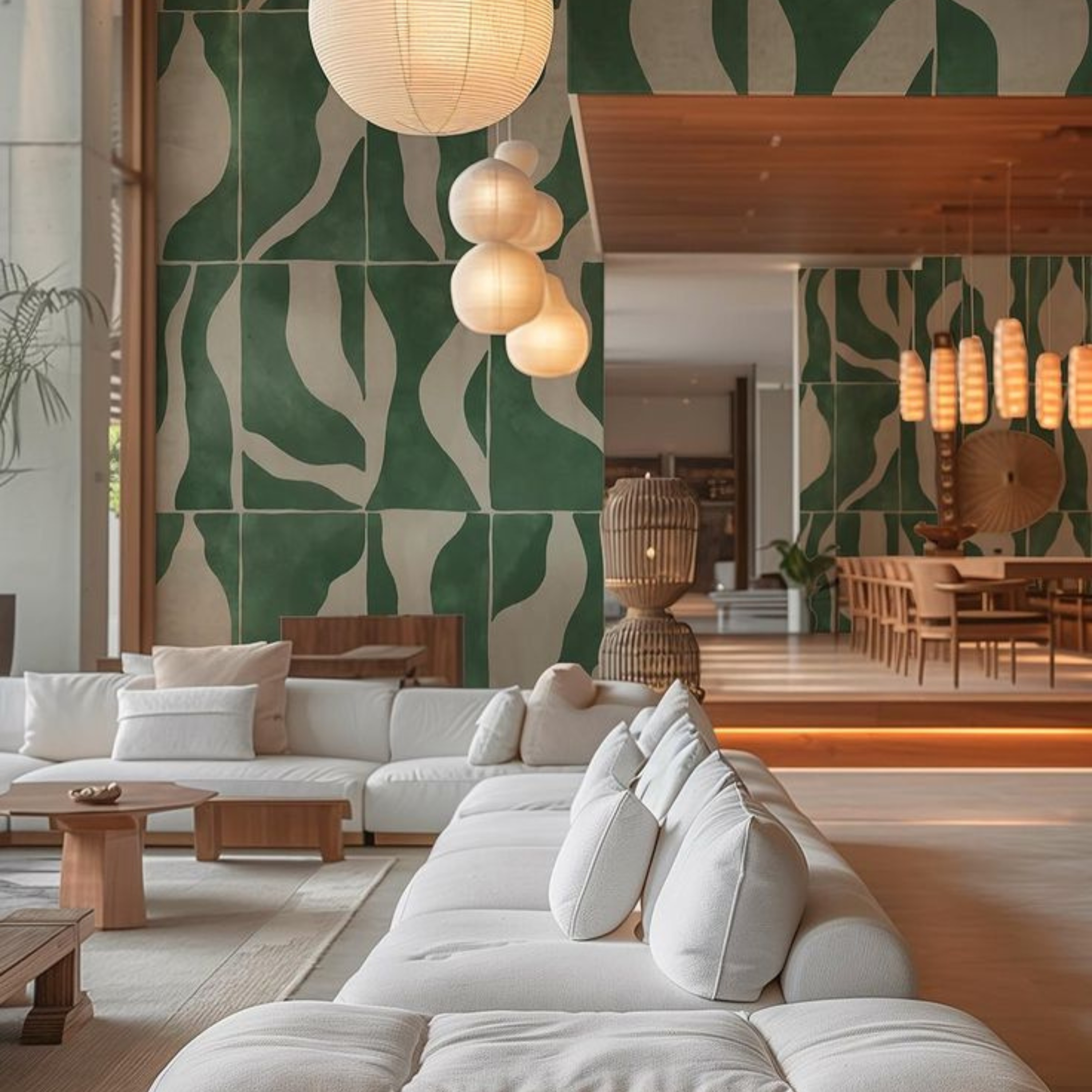

The product in real interiors
